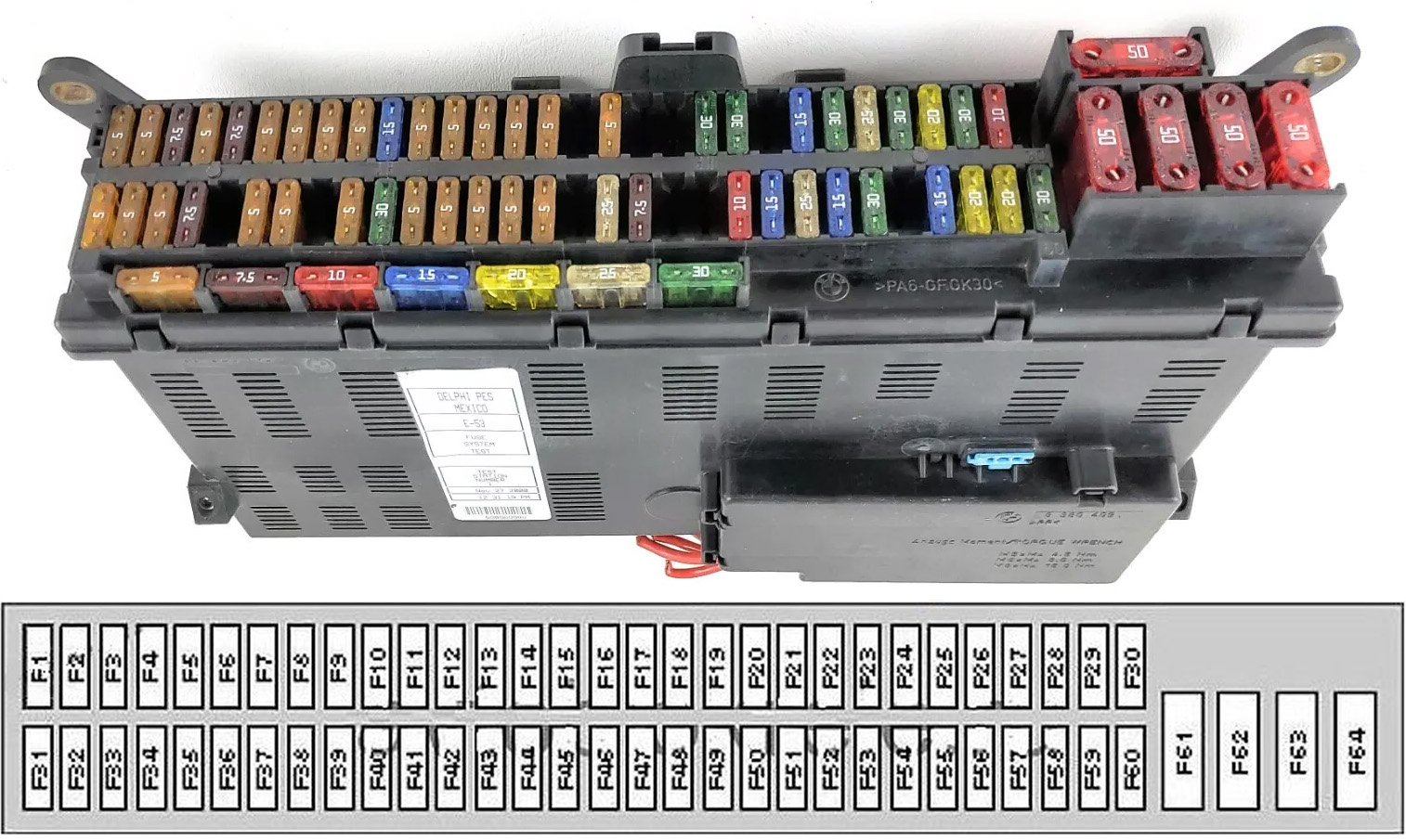

bmw x5 e53 fuse box diagram

The BMW X5 E53 fuse box diagram helps owners and technicians quickly locate, identify, and troubleshoot the vehicle’s fuses and relays. Each fuse corresponds to a specific electrical component, such as the A/C, windows, radio, etc. The diagram clearly shows the location and function of each fuse, allowing users to check for blown fuses and replace them as needed. With the fuse box diagram, users can efficiently address electrical issues, avoiding unnecessary repairs or part replacements.

№	A	Component
F1	5A	Data bus connection, instrument panel
F2	5A	Lamps control module
F3	5A	Heater/air conditioning (AC) (until 02/01)
F4	5A	Ignition coil relay
F5	7,5A	Alternator, engine oil level sensor, fuse box/relay plate cooling fan motor
F6	5A	Interior rearview mirror, parking aid control module(until 02/04), tyre pressure monitor control module
F7	5A	Ignition coil relay
F8	5A	Instrument illumination
F9	5A	Airbag, brake pedal position (BPP)switch, lamps control module
F10	15A	Horn
F11	5A	Immobilizer
F12	5A	Instrument illumination, steering position sensor
F13	5A	Alarm system, interior rearview mirror
F14	5A	Multifunction control module 1
F15	5A	Tyre pressure monitor control module (until 02/04)
F16	5A	Ignition switch
F17	5A	Interior lamps control module
F18	-	-
F19	-	-
F20	30A	Door function control module, driver
F21	30A	Electric seats
F22	-	-
F23	-	-
F24	30A	Door function control module, passenger
F25	25A	Charging socket, cigarette lighter
F26	30A	Ignition main circuits relay
F27	20A	Multifunction control module 1
F28	30A	Headlamp washers
F29	10A	Airbag
F30	-	-
F31	5A	Engine management
F32	5A	Ignition main circuits relay, multifunctioncontrolmodule2
F33	5A	Cigarette lighter
F34	7,5A	Heated rear window, heater/air conditioning (AC)
F35	-	-
F36	5A	Charging socket
F37	5A	Multifunction control module 2
F33	-	-
F39	5A	Clutch pedal position (CPP) switch, immobilizer
F40	30A	Windscreen wipers
F41	5A	Rear screen wash/wipe system, multifunction control module 1
F42	5A	Interior lamps
F43	5A	Instrument panel
F44	5A	Airbag, electric seats
F45	5A	Instrument panel
F46	7,5A	Transfer box control module
F47	25A	Fuel pump (FP) relay
F48	7,5A	Heater/air conditioning (AC)
F49	-	-
F50	-	-
F51	10A	Anti-lock brake system (ABS), engine management
F52	15A	Datalink connector (DLC) (until 09/00)
F53	25A	Multifunction control module 2
F54	15A	Transmission control module(TCM)
F55	30A	Anti-lock brake system (ABS)
F56	-	-
F57	15A	Suspension control module
F58	20A	Sunroof
F59	20A	Auxiliary heater
F60	30A	Multifunction control module 1
F61	50A	Engine coolant blower motor
F62	50A	Secondary air injection (AIR) pump relay
F63	50A	Anti-lock brake system (ABS)
F64	50A	Heater/air conditioning (AC)
