BMW F36 Parts Catalogue & 4-Series Gran Coupe

The BMW F36 refers to the 4 Series Gran Coupe, which was produced by BMW between 2014 and 2020. It is a five-door hatchback version of the 4 Series coupe, with a more practical rear seat and hatchback-style trunk, blending the performance of a coupe with the versatility of a sedan.

Here's a detailed introduction to the common parts and components found in the BMW F36:

1. Engine Components

The BMW F36 comes with various engine options, typically inline-4 and inline-6 engines, depending on the trim. These engines are part of BMW’s TwinPower Turbo range. Here’s a breakdown of the key components:

• Engine Block: The main structure of the engine, housing the cylinders, pistons, and other internal components.

• Cylinder Head: Houses the intake and exhaust valves, camshaft(s), and spark plugs.

• Turbocharger: Available on models such as the 430i and 440i, the turbo enhances engine performance by increasing the intake air pressure.

• Intercooler: Cools the compressed air from the turbocharger before it enters the engine for combustion.

• Crankshaft and Pistons: These parts are essential in converting the engine’s power to rotation, transferring it to the drivetrain.

2. Transmission

The BMW F36 typically uses a 8-speed ZF automatic transmission or a 6-speed manual transmission (on some models). Key transmission parts include:

• Torque Converter: In automatic models, this device allows smooth power transfer between the engine and transmission.

• Clutch (Manual Only): Engages and disengages the engine from the transmission.

• Shifter and Linkages: Control the gear selection, whether automatic or manual.

3. Suspension System

BMW is known for its precision handling, and the F36 features an advanced suspension system. Components include:

• Front Suspension: Typically independent with MacPherson struts, providing a balance between comfort and handling.

• Rear Suspension: Multi-link setup for better stability and precise handling, crucial for performance.

• Anti-Roll Bars: Help reduce body roll during cornering.

• Shock Absorbers: Control the bounce and vibration of the vehicle, ensuring a smooth ride.

4. Braking System

The F36 Gran Coupe is equipped with high-performance brakes for better stopping power. Key components include:

• Disc Brakes: Both front and rear, often vented and slotted for high heat dissipation during aggressive driving.

• Brake Calipers: House the brake pads and apply pressure to the discs.

• Brake Pads: Made of various materials, such as ceramic or semi-metallic, for varying levels of performance.

• Brake Fluid Reservoir and Lines: Maintain the hydraulic pressure required for braking.

5. Electrical and Electronics

The BMW F36 Gran Coupe features an advanced electrical system to support infotainment, driving aids, and performance features.

• Battery: Powers all electrical systems and starts the engine.

• Alternator: Charges the battery while the engine runs.

• Infotainment System: The BMW iDrive system controls navigation, media, and vehicle settings.

• Sensors and Cameras: Used for various safety systems, such as parking sensors, collision avoidance, lane-keeping assist, and adaptive cruise control.

• LED Lighting: Both interior and exterior lights, including daytime running lights (DRLs), adaptive headlights, and interior ambiance lighting.

6. Exhaust System

The exhaust system in the F36 is designed for optimal performance and efficiency:

• Exhaust Manifold: Collects exhaust gases from the engine’s cylinders.

• Catalytic Converter: Reduces harmful emissions by converting toxic gases into less harmful substances.

• Muffler/Resonator: Reduces noise produced by the engine’s exhaust gases.

• Tailpipes: Discharge the exhaust gases from the vehicle.

7. Body and Exterior Components

The exterior design of the F36 is sleek, but it still offers practicality. Key components include:

• Front and Rear Bumpers: Protect the vehicle in low-speed collisions and house sensors and lights.

• Side Skirts: Enhance aerodynamics and aesthetics.

• Fenders and Hoods: Provide structural protection and style.

• Mirrors: Feature integrated turn signals and sometimes camera systems for parking assistance.

8. Interior Components

The interior of the F36 combines luxury with functionality, with several key parts contributing to comfort and convenience:

• Seats: Leather upholstery, often with power adjustments, memory functions, and heating/cooling options.

• Steering Wheel: Leather-wrapped, with controls for infotainment, cruise control, and more.

• Dashboard and Instrument Cluster: Digital displays showing speed, fuel economy, engine stats, and navigation information.

• Climate Control System: Dual-zone automatic climate control for adjusting the cabin temperature.

• Center Console: Houses the gear shifter, iDrive controller, and cupholders.

9. Wheels and Tires

The F36 Gran Coupe is equipped with performance-oriented wheels and tires that ensure optimal grip and handling:

• Alloy Wheels: Lighter and stronger than steel wheels, providing better performance and style.

• Tires: High-performance tires for better handling, especially in sporty driving conditions.

10. Safety Features

BMW integrates many safety features into the F36, including:

• Airbags: Including front, side, and curtain airbags for occupant protection in case of a crash.

• Brake Assist: Automatically applies maximum braking force in emergency situations.

• Traction and Stability Control: Prevents loss of control in slippery conditions or when cornering aggressively.

• Parking Sensors and Rearview Camera: Assist in parking and avoiding obstacles.

11. Performance Parts (M Sport Models)

For those who opt for the M Sport package or the M4, additional performance parts may include:

• M Performance Brakes: Larger, more durable brakes that provide superior stopping power.

• M Suspension: A more aggressive setup for handling and responsiveness.

• Larger Wheels and Tires: Optimized for performance driving.

12. Fuel System

• Fuel Injectors: Spray the right amount of fuel into the engine for combustion.

• Fuel Pump: Delivers fuel from the tank to the engine.

• Fuel Tank: Stores the fuel for combustion.

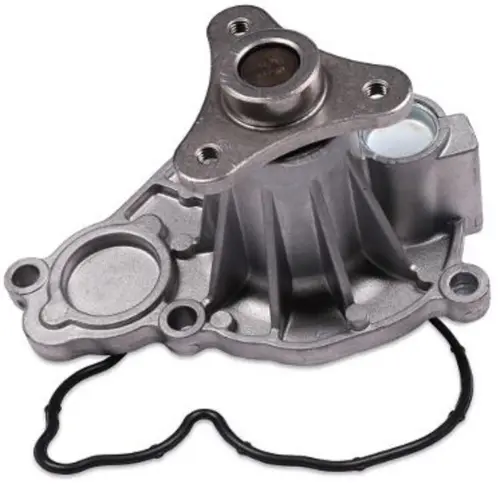

13. Cooling System

• Radiator: Cools the engine coolant, preventing overheating.

• Coolant Reservoir: Holds the coolant and maintains proper levels.

• Thermostat: Regulates the engine's operating temperature.

Conclusion

The BMW F36 Gran Coupe is a finely tuned vehicle with a combination of luxury, performance, and practicality. The parts in the F36 reflect BMW's commitment to precision engineering, advanced technology, and driving dynamics, with various systems working together to provide a comfortable and thrilling driving experience.
