The BMW E46, which refers to the 3 Series model produced from 1997 to 2006, is known for its high-performance engineering and reliability. The engine parts of the E46 vary depending on the specific model (e.g., 316i, 318i, 320i, 323i, 325i, 328i, 330i, M3), but the core engine components are generally similar across most variants. Below is a detailed introduction to the main engine parts of the BMW E46:

1. Engine Block

The engine block is the main structure of the engine that houses several vital components like the cylinders, pistons, and crankshaft. It’s typically made of cast iron or aluminum alloy for strength and durability. In the E46, the engine block is designed to support the engine's high-revving nature, particularly in the M3 model with its S54 engine.

2. Cylinder Head

The cylinder head sits on top of the engine block and houses critical components such as the intake and exhaust valves, camshafts, and the combustion chamber. On the E46, the cylinder head is typically made from aluminum, providing a balance of strength and weight. The head also includes the valve lifters, timing chains, and the camshaft that controls valve opening and closing.

3. Pistons

Pistons are crucial in the combustion process. They move up and down within the cylinders as a result of combustion pressure, converting energy into mechanical power. E46 engines feature forged or cast pistons, with the performance models (like the 330i and M3) using high-performance pistons designed to withstand higher engine stress.

4. Crankshaft

The crankshaft converts the linear motion of the pistons into rotational motion that ultimately drives the vehicle’s wheels. The crankshaft of the E46 engine is designed for high strength, especially in the performance models like the 330i and M3, where it can endure higher RPMs and stresses.

5. Timing Chain and Timing Components

The timing chain connects the crankshaft to the camshaft, ensuring that the intake and exhaust valves open and close at the correct time. The E46 uses a timing chain (rather than a timing belt), which generally lasts longer and requires less maintenance. It is an essential component that ensures the engine’s valves and pistons remain in sync.

6. Fuel Injectors

The fuel injectors in the E46 engine are responsible for spraying a fine mist of fuel into the combustion chamber at the correct pressure and timing. They are electronically controlled and play a significant role in the engine's fuel efficiency and performance. Over time, injectors can get clogged, which may result in poor engine performance or fuel economy.

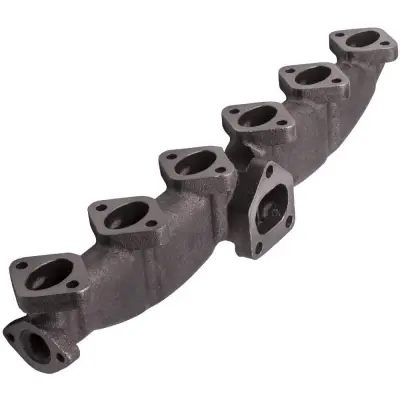

7. Intake and Exhaust Manifolds

The intake manifold directs air into the engine's cylinders, while the exhaust manifold channels exhaust gases out of the cylinders and into the exhaust system. The intake manifold on the E46 is typically made from composite materials or aluminum, designed to optimize airflow for better engine efficiency and power. The exhaust manifold is made from stainless steel or cast iron to withstand high temperatures.

8. Valves (Intake and Exhaust)

Valves control the flow of air and exhaust gases into and out of the engine’s combustion chamber. In the E46, the intake and exhaust valves are controlled by the camshaft and lifters. These valves need to be precisely timed to ensure optimal engine performance and fuel efficiency. Some models also feature variable valve timing (VANOS) for adjusting the timing of the intake and exhaust valves for improved efficiency and power at different RPMs.

9. Camshaft

The camshaft controls the opening and closing of the intake and exhaust valves. The E46 engine uses a dual overhead cam (DOHC) design, which means there are two camshafts per bank of cylinders (for inline-six engines, such as the 330i and M3). The M3, with its S54 engine, has a more aggressive camshaft profile for higher performance.

10. VANOS System (Variable Valve Timing)

The VANOS (Variable Valve Timing) system is a BMW innovation that optimizes engine performance by adjusting the timing of the intake and exhaust valves based on engine speed and load. In the E46, the VANOS system is used to improve fuel efficiency, reduce emissions, and increase power output at various RPM ranges. This is particularly noticeable in the M3’s S54 engine, which has a dual VANOS system for both intake and exhaust valves.

11. Oil Pump

The oil pump circulates oil through the engine to lubricate the moving parts, reducing friction and heat buildup. The E46 engine is equipped with a robust oil pump to ensure reliable lubrication, especially at high RPMs. Regular oil changes are essential to keep the pump and engine components in top condition.

12. Water Pump

The water pump is responsible for circulating coolant through the engine and radiator, preventing the engine from overheating. Over time, the water pump can fail, leading to overheating and potential engine damage. In the E46, the water pump is driven by the serpentine belt and should be replaced as part of routine maintenance.

13. Serpentine Belt and Tensioners

The serpentine belt is a crucial component that drives many accessories, including the alternator, power steering pump, air conditioning compressor, and water pump. The E46 uses a single serpentine belt system, and tensioners help maintain the correct tension on the belt to prevent slippage.

14. Turbocharger / Supercharger (on Some Models)

Some E46 models (especially after-market or special editions) may be equipped with a turbocharger or supercharger to increase engine output. These forced induction systems compress the intake air, allowing for more oxygen to enter the engine, thus improving power. The E46 M3 (S54 engine) is naturally aspirated, but aftermarket upgrades, including turbocharging, are common for enthusiasts.

15. Throttle Body

The throttle body regulates the amount of air entering the engine, controlled by the accelerator pedal. In modern BMWs like the E46, the throttle body is electronically controlled, allowing for precise airflow adjustments to maintain optimal engine performance.

16. Spark Plugs

Spark plugs ignite the air/fuel mixture in the combustion chamber. The E46 engine uses multi-electrode spark plugs, which provide a more stable and efficient spark. Regular replacement of spark plugs is crucial for maintaining engine performance, especially in higher-performance models like the 330i and M3.

17. Crankshaft Position Sensor and Camshaft Position Sensor

These sensors monitor the position and speed of the crankshaft and camshaft, allowing the engine control unit (ECU) to adjust the timing of the fuel injectors and ignition system. They are crucial for ensuring that the engine runs smoothly and efficiently.

18. Engine Control Unit (ECU)

The ECU is the brain of the engine. It monitors and controls various sensors and components within the engine, including the fuel injectors, ignition system, and variable valve timing (VANOS). The ECU ensures that the engine runs efficiently, balancing performance with fuel economy and emissions.

19. Exhaust System

The exhaust system consists of several components, including the catalytic converter, muffler, and exhaust pipes. The catalytic converter reduces harmful emissions, while the muffler reduces noise. The E46’s exhaust system is designed to be efficient, ensuring that the engine produces minimal emissions while still offering high performance, especially in the sportier models like the M3.

20. Cooling System

The cooling system in the BMW E46 includes the radiator, hoses, thermostat, and coolant. The system is designed to keep the engine at an optimal operating temperature. Overheating is a common cause of engine failure, so regular maintenance of the cooling system is essential.

Conclusion

The engine parts of the BMW E46 are designed for a combination of performance, efficiency, and reliability. Regular maintenance and using high-quality replacement parts are essential to keep the engine running smoothly, especially for higher-performance models like the 330i and M3. The E46 engine is widely regarded for its robustness and longevity, making it a favorite among driving enthusiasts.
